Electric Fencing Solutions

Electric fencing system is an ideal solution to contain animals in a select area keeping them safe, and control animal movement on farm. With such flexibility, It may also be used to achieve optimum pasture yields.

Versatile & Economical

Electric fencing can be used in many different applications: new, purpose built fences for containment or exclusion of large animals; retrofitting an old fence to extend its life or to protect a new conventional fence; feral animal exclusion and temporary fencing for pasture management and animal control.

The right solution for your needs

An inside look at Gallagher products in action

Select a specific animal

x

Select a farming challenge

x

Select a system

x
  • Permanent Fencing

  • Temporary & Portable Fencing

  • Retrofit Fencing



Permanent high tensile wire systems create long life, permanent electric fences. They are easy to install and operate and provide highly effective animal control that lasts a lifetime.

Permanent fences use highly conductive, corrosion resistant fence wire together with wood, steel, fibreglass or Gallagher Insulated Line Posts, coupled with components to keep fences looking good and working effectively for a life time

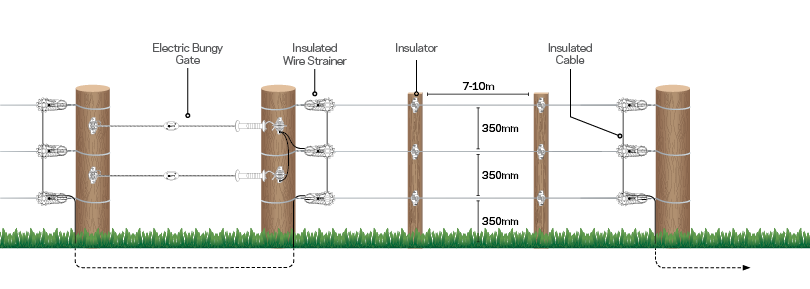

NZ Global fence diagrams for solution pages - Permanent-General Purpose

Constructing permanent electric fences involves several steps:

1. Installing end & corner posts

2. Attaching strain insulators to end posts

3. Installing guide wires and line posts

4. Tensioning the wires

5. Completing the electrical connections

6. Installing gates and gateways



Gallagher also recommends using fence management tools to make fault finding and repair quick and easy.





Portable fencing is so easy to move and set up it’s a versatile solution for fencing any type of animal, even on the most remote area of your property.



A temporary/portable electric fence can be powered by any Gallagher Solar or Battery Energizer or can be simply connected to a permanent electric fence supplied by a mains powered Energizer.

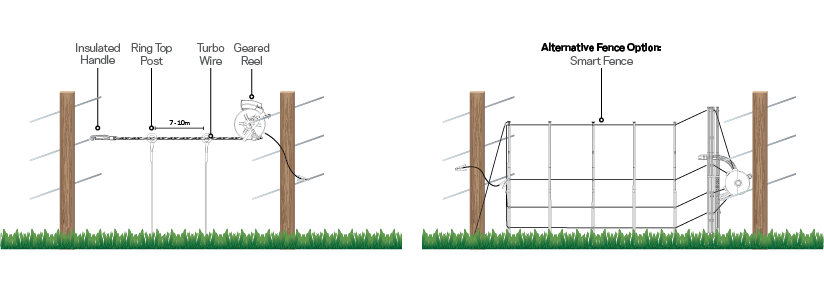

NZ Global fence diagrams for solution pages - Portable-General Purpose

Featured products

G74913

Heavy Duty Ring Top Post

G6115

Geared Reel

G62153

5mm Striped Turbo Braid

G63400

Single Reel Lead Connector


This
Electric Fencing Manual guides you through the right fencing setups and range of products required to fence your cattle, sheep, pigs, goats and horses. If you are new to electric fencing, our tips will help you get off to a great start.

Retrofit electric fencing is an economical and easy to install option if you have an existing or new non-electric fence that you want to protect.



Offset brackets are fitted to a conventional fence to suspend an electrified wire (or wires) on one or both sides of the fence. The wire discourages animals from rubbing or pushing against the fence, thereby extending its life.



A variety of offset brackets are available to attach to wood post or steel fences, or to mount directly onto the wires of an existing non-electric fence (barbed wire, chain link, etc.).

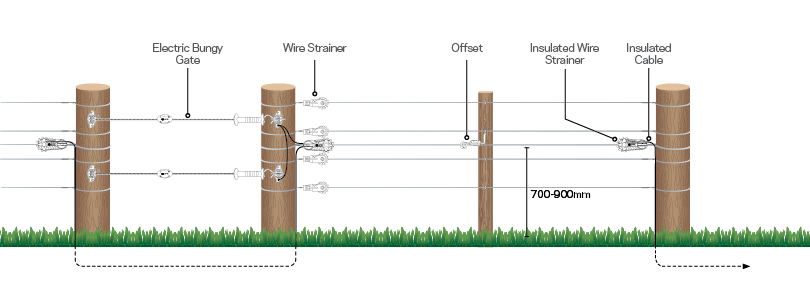

NZ Global fence diagrams for solution pages - Offset retrofit. -General Purpose

Featured products

G7511

Ring Top Offset Side Mount

G75152

Ring Top Offset Top Mount Double End

G81210

Fibreglass Offset 300mm x 10mm

G66504

Pinlock Insulator - For Wire Offset

This Electric Fencing Manual guides you through the right fencing setups and range of products required to fence your cattle, sheep, pigs, goats and horses. If you are new to electric fencing, our tips will help you get off to a great start.


This
 Electric Fencing Manual guides you through the right fencing setups and range of products required to fence your cattle, sheep, pigs, goats and horses. If you are new to electric fencing, our tips will help you get off to a great start.
