Electric Fencing Solutions



An electric fence system is an ideal solution to contain animals in a select area keeping them safe, and control animal movement on farm. With such flexibility, it may also be used to achieve optimum pasture yields.




Versatile & Economical



Safe, easy to install, made to last and economical compared to non-electric fences. Gallagher’s electric fence systems offer a wide range of fencing options for all animal types, from lifestyles through to professional farmers. Select from the range of permanent, portable and offset retrofit fencing systems.





  • Permanent fencing

  • Temporary and Portable

  • Retrofit Fencing


Permanent Fencing


Permanent high tensile wire systems create long life, permanent electric fences. They are

easy to install and operate and provide highly effective animal control that lasts a lifetime.



Permanent fences use highly conductive, corrosion resistant fence wire together with wood,

steel, fibreglass or Gallagher Insulated Line Posts, coupled with components to keep fences

looking good and working effectively for a life time

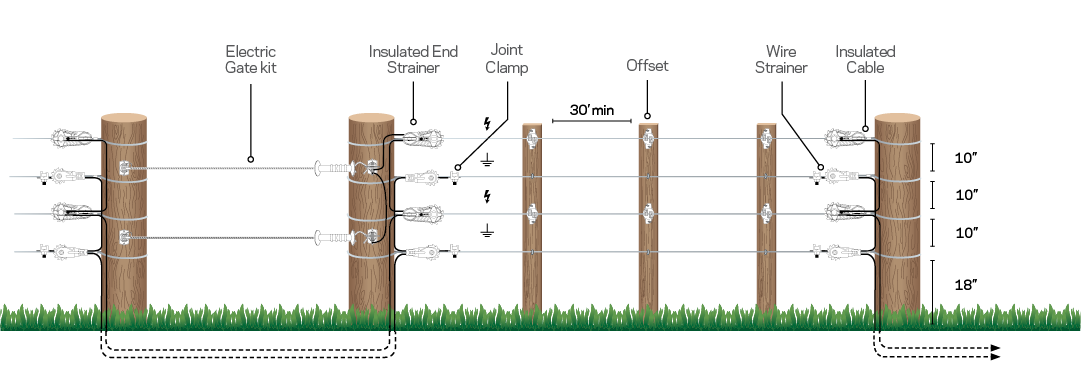

NA Global fence diagrams for solution pages - NA Cattle Wood Post Permanent ER-original



Constructing permanent electric fences involves several steps:

1. Installing end & corner posts

2. Attaching strain insulators to end posts

3. Installing guide wires and line posts

4. Tensioning the wires

5. Completing the electrical connections

6. Installing gates and gateways



Gallagher also recommends using fence management tools to make fault finding and repair

quick and easy.

This Electric Fencing Manual guides you through the right fencing setups and range of products

required to fence your cattle, sheep, pigs, goats and horses. If you are new to electric fencing, our

tips will help you get off to a great start.





Need some help figuring

out the right products

and quantities?



Portable Fencing

Portable fencing is so easy to move and set up it’s a versatile solution for fencing any
type of

animal, even on the most remote area of your property.


A temporary/portable electric fence can be powered by any Gallagher Solar or Battery
Energizer

or can be simply connected to a permanent electric fence supplied by a mains powered Energizer.

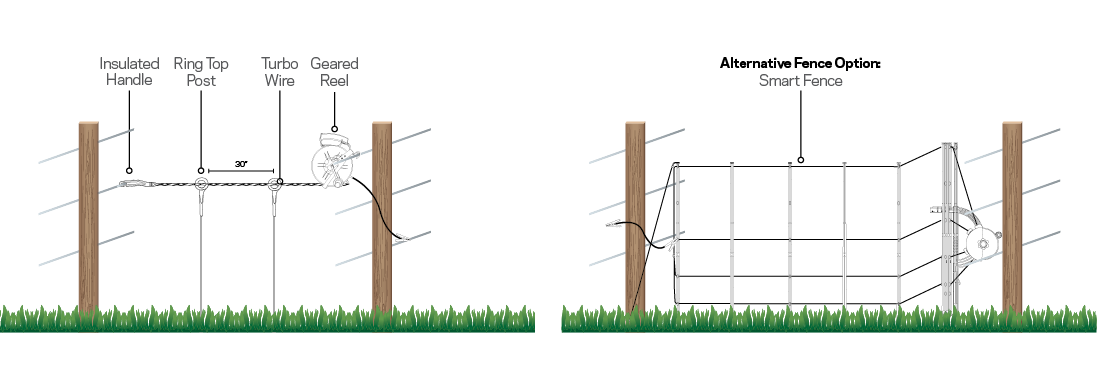

NA Global fence diagrams for solution pages - NA Cattle Ring Top Post Portable-original



This Electric Fencing Manual guides you through the right fencing setups and range of products

required to fence your cattle, sheep, pigs, goats and horses. If you are new to electric fencing, our

tips will help you get off to a great start.






Need some help figuring

out the right products

and quantities?

Featured products

G72315

Ring Top Post

G74815

Heavy Duty Multi Wire Ring Top Post

G61100

Standard Reel

G620

Turbo Wire


Retrofit Fencing


Retrofit electric
fencing is an economical and easy to install option if you have an existing

or new non-electric fence that you want to protect.



Offset brackets are fitted to a conventional fence to suspend an electrified wire (or wires)

on one or both sides of the fence. The wire discourages animals from rubbing or pushing

against the fence, thereby extending its life.



A variety of offset brackets are available to attach to wood post or steel fences, or to mount

directly onto the wires of an existing non-electric fence (barbed wire, chain link, etc.).

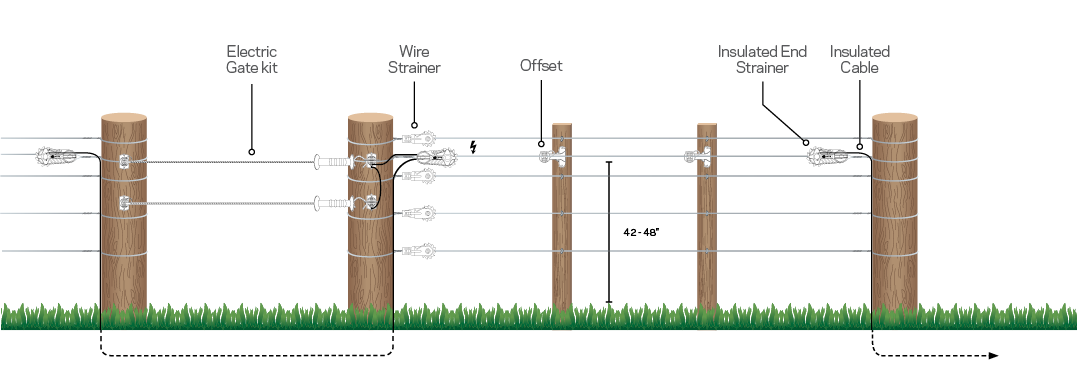

NA Global fence diagrams for solution pages - NA Cattle HT Wire Wood Post Retrofit-original

This Electric Fencing Manual guides you through the right fencing setups and range of products

required to fence your cattle, sheep, pigs, goats and horses. If you are new to electric fencing, our

tips will help you get off to a great start.





Need some help figuring

out the right products

and quantities?

Featured products

G687

Wood Post Pinlock Insulator

G673

Wood Post Claw Insulator

G664054

Wire Mount Offset with Porcelain Insulator 12"

G653054

Chain Link Offset w/Porcelain Insulator - 12"
