Electric Fencing solutions for effective animal containment and exclusion



The extensive range of Gallagher Electric Fencing products provide solutions for containment of sheep, cattle and other stock as well as safe electric fencing options for equine properties. The unique combination of Gallagher Westonfence and our superior i Series Energizers provides the perfect solution for exclusion of pest animals including wild dogs, pigs, kangaroos and deer.


What can I use electric fencing for?

Electric fencing can be used in many different applications: new, purpose built fences for containment or exclusion or large animals; retrofitting an old fence to extend its life or to protect a new conventional fence; feral animal exclusion and temporary fencing for pasture management and animal control.



How does electric fencing work?

A short, safe and memorable shock creates a psychological - as well as a physical - barrier. Every electric fence system is made up of a power source and a fencing system. Selection of these systems depends on farm size, fencing usage and animal type.





  • Permanent Fencing

  • Retrofit Fencing

  • Temporary and Portable Fencing

  • Gallagher Westonfence



Permanent Fencing


Permanent high tensile wire systems create long life, permanent electric fences.
They are easy to install

and operate and provide highly effective animal control that lasts a lifetime.



Permanent fences use highly conductive, corrosion resistant fence wire together with wood, steel, fibreglass

or Gallagher Insulated Line Posts, coupled with components to keep fences looking good and working

effectively for a lifetime.

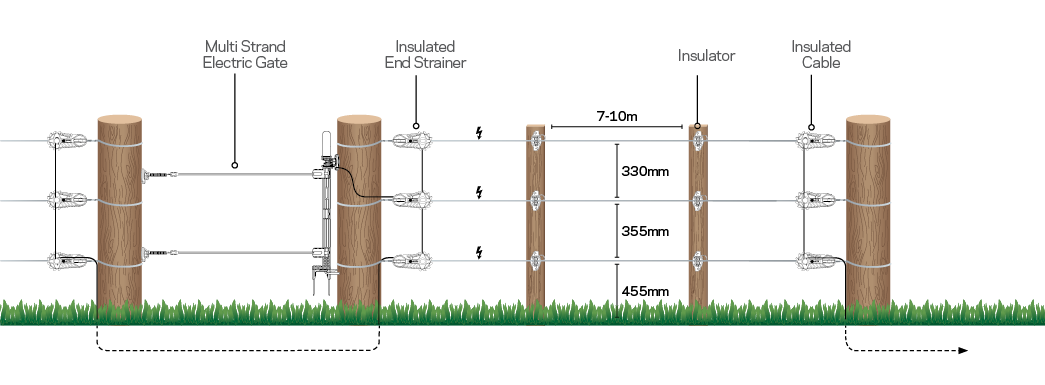

AUS Global fence diagrams for solution pages - AUS Cattle Wood Post Perm AL-General Purpose

Constructing permanent electric fences involves several steps:

1. Installing end & corner posts

2. Attaching strain insulators to end posts

3. Installing guide wires and line posts

4. Tensioning the wires

5. Completing the electrical connections

6. Installing gates and gateways



Gallagher also recommends using fence management tools to make fault finding and repair quick and easy.


This Electric Fencing Manual guides you through the right fencing setups and range of products required to

fence your animals and protect them from external predatorsIf you are new to electric fencing, our tips will

help you get off to a great start.







Need some help figuring

out the right products

and quantities?


Retrofit Fencing

Retrofit electric fencing is an economical and easy-to-install option if you have an existing or new

conventional, non-electric fence that needs to be protected.



Brackets are fitted to the existing fence with an electrified wire that discourages animals from

rubbing against the fence, thereby extending its life. A variety of offset brackets are available to

attach to wood post or steel fences, or to mount directly onto the wires of an existing non-electric

fence.

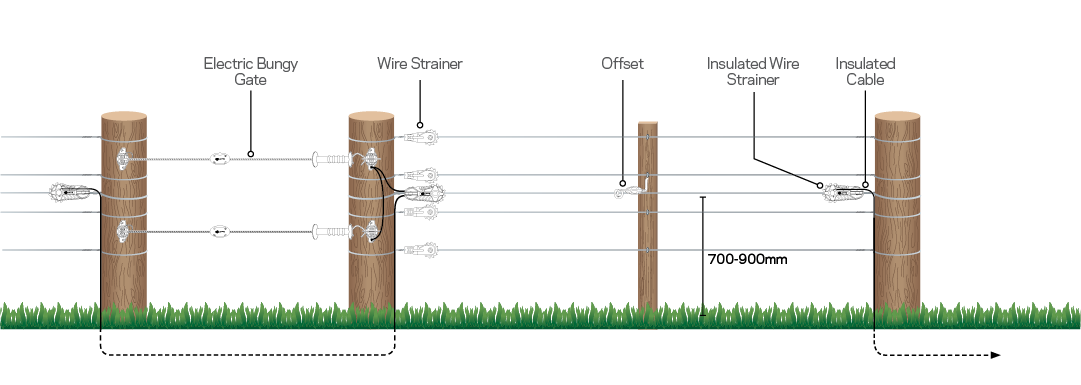

NA Global fence diagrams for solution pages - NA Cattle HT Wire Wood Post Retrofit-original


This Electric Fencing Manual guides you through the right fencing setups and range of products required

to fence your animals and protect them from external predators. If you are new to electric fencing, our

tips will help you get off to a great start.





Need some help figuring

out the right products

and quantities?

Featured products

SG6646

Bracket Offset "C" Clip with Porcelain Reel

G81210

Fibreglass Offset 300mm x 10mm

SG21

Wood Post Live Tip Offset

SG80200

Insulated Suspension Post Leaning Offset 660mm



Portable Fencing

Portable electric fences are easy to transport, assemble and take down, allowing flexible

fencing for short-term animal control or rotational grazing. Tapes, Wires and Braids are

used on portable electric fences as they are light, highly visible and easy to wind.



A temporary or portable electric fence can be powered by any Gallagher Solar or Battery

Energizer or can be simply connected to a permanent electric fence.

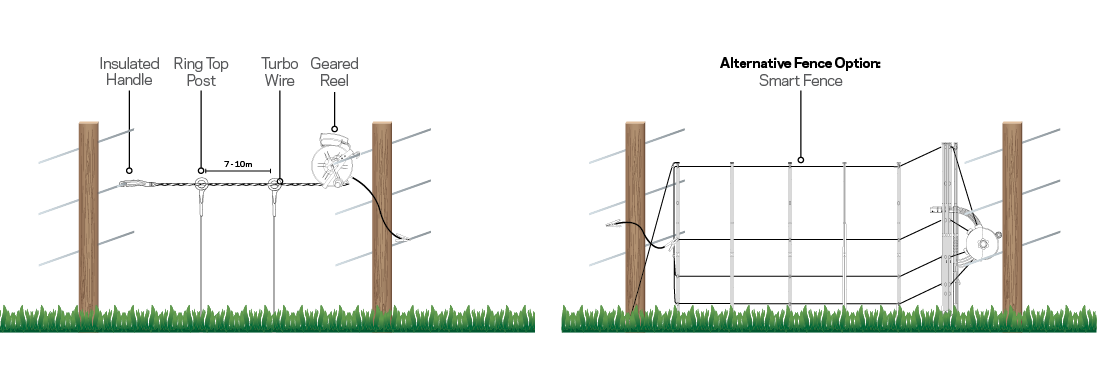

AUS Global fence diagrams for solution pages - Portable Cattle-General Purpose



This Electric Fencing Manual guides you through the right fencing setups and range of

products required to fence your animals, or to protect them from external predators.

If you are new to electric fencing, our tips will help you get off to a great start.







Need some help figuring

out the right products

and quantities?

Featured products

G723

Ring Top Post

G62454

40mm Turbo Tape

G70000

Smart Fence 2

G61100

Medium Reel



Westonfence


It’s 2020.
Australian farmers are using satellites to guide tractors, remote sensors to

monitor soils and robots to milk cows. Every aspect of farm operations has evolved

to a higher level of excellence - except fencing.



But now there’s Gallagher Westonfence – a proven, permanent electric fencing solution

that stands the test of time and outperforms legacy fencing on every measure.



A fence that is more economical to monitor and maintain, that tells you how your fence

is performing and takes seconds to check, rather than hours.



AUS Global fence diagrams for solution pages - Insulated Suspension Post Cattle ER-General Purpose

Discover the Gallagher Westonfence range here, head into your local rural reseller or call

your local Gallagher Territory Manager on 1800 425 524 to push your boundaries and take

your farm productivity to a whole new level of excellence, effectiveness and efficiency with

Gallagher Westonfence.





Need some help figuring

out the right products

and quantities?

Featured products

SG80119

Insulated Suspension Post D10 XL 1650mm

SG85000

Westonfence Applicator Tool

SG82200

Westonfence ISP High Tensile Fastening Clips

SG84000

Westonfence Earth Stake





Profitable
Maximise pasture growth, minimise feed costs

Safe
Animals remember and develop a respect for the fence

Durable
Stock pressure on your fence is reduces so it lasts longer

Easy to install and economical
Less than half the time to build vs a non-electric fence and costs less to
build and maintain

Investment
Electric fencing takes less time, effort and cost than traditional fencing. It gives farmers precise control over feed to allow allocation of pasture and other forages through permanent and temporary subdivisions.
